Control tests¶

Control tests are ELTMaestro's data-quality checks: each compares an expected value against an actual value and records a pass/fail and a colour, which the client draws as a tree. This page is the reference for the type codes, how a comparison is actually evaluated, how parent nodes get their colour, and the three SQL patches that carry the recent fixes.

Status. Everything on this page is in server patch e45c8bfc5 (5 September 2026), published to the release bucket and sent to MMS. It is not yet in a numbered server image; a fresh install from initdb.sql carries all of it. See Delivery.

The type codes are two different things¶

control_test.control_test_type_cd mixes measured tests with hierarchy nodes, which is the single most confusing thing about this feature.

Code	Meaning	Measured?
`B`	Boolean — exact match, tolerance ignored entirely	yes
`C`	Count / equality, either direction	yes
`I`	Same rule as `C`	yes
`L`	Lower bound — signed, so a shortfall passes however large	yes
`U`	Upper bound — signed	yes
`P`	Parent node in `control_test_hierarchy` (a mart, fact or dimension)	no
`S`	System root node	no
`M`	Offered by the client's dropdown, has no comparison rule	no

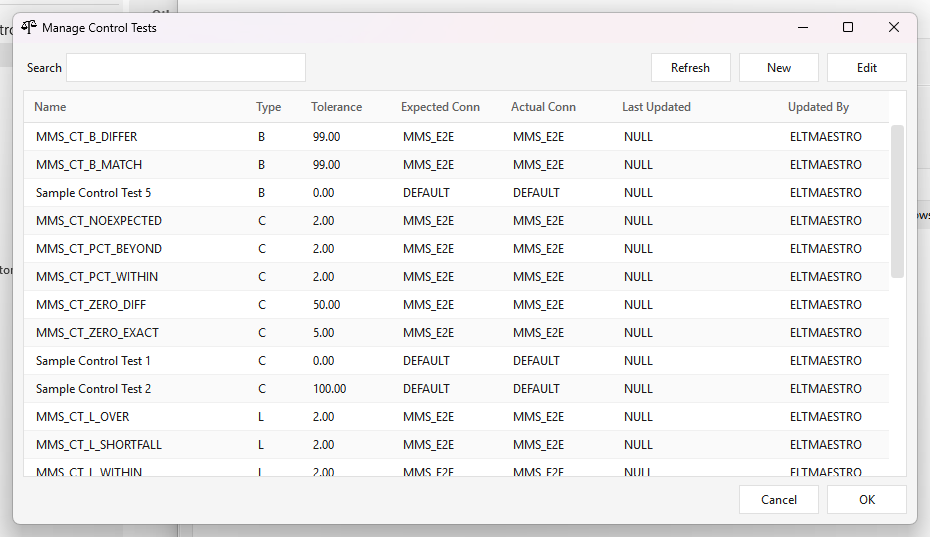

Manage Control Tests window listing tests with their Type and Tolerance columns: B rows with 99.00, C rows with 2.00 / 5.00 / 50.00 / 100.00, L rows with 2.00

P and S are not unsupported comparison types — they are the tree. Their colour is computed from their children by rollup_controls2, they carry no tolerance, and they are never evaluated against one. On dev1 the eight P rows are Sales Fact, Customer Dimension, Contact Reason Dimension and so on, under a single S row, DATA WAREHOUSE SYSTEM.

Handing a value to a P or S node is a mistake, and since d3a6553c4 it is named as one rather than reported as a missing test.

Tolerance is a PERCENTAGE¶

Changed in 450b3a435 — shipped in server patch e45c8bfc5 (5 September 2026); not yet in a numbered server image, and there it is GATED behind apply-tolerance.sh. This reinterprets every stored tolerance.

Tolerance used to be an absolute difference in whatever units the test measured. It is now a percentage of the expected value: 2.00 means 2 %, 0.02 means two hundredths of one percent. (That also settles the question MMS asked on 30 July — 2 % is written 2.00.)

The editor says so where the value is typed — the field is labelled Tolerance % and its tooltip reads "Tolerance as a PERCENTAGE of the expected value. 2.00 means 2%. 0 requires an exact match. Ignored for Boolean tests.":

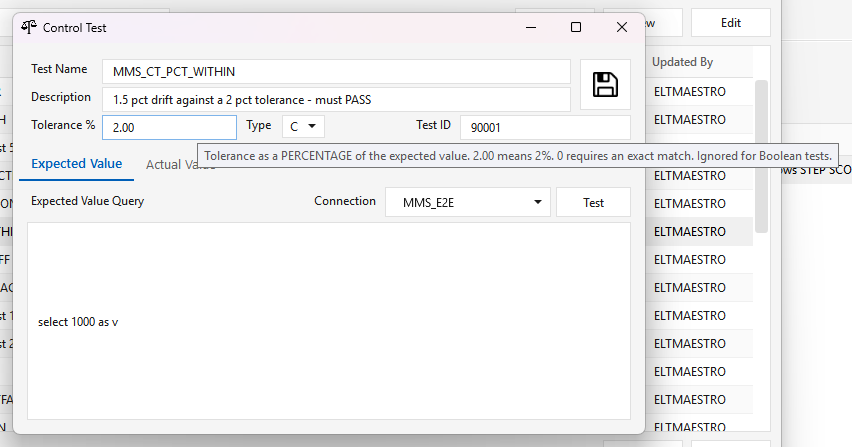

Control Test editor for MMS_CT_PCT_WITHIN: Tolerance % field holding 2.00, Type C, and the tooltip text explaining the percentage rule

One function decides every comparison:

control_test_passes(type, expected, actual, tolerance_pct) RETURNS boolean

diff = actual - expected
B                -> diff = 0                       (tolerance ignored)
expected = 0     -> diff = 0                       (a percentage of zero is undefined)
otherwise pct = diff * 100 / |expected|
C, I             -> ABS(pct) <= tolerance
L                -> pct < tolerance                (signed, deliberately)
U                -> pct > tolerance                (signed, deliberately)
anything else    -> named exception

It replaced the same comparison inlined in four separate functions. The one the engine calls is set_actual_test_value_by_test_nm (PG.java:677) — worth stating because an audit that scans only part of initdb.sql finds three of the four and misses exactly that one.

Do not apply this to a client without measuring first¶

⚠️ A test carrying 100, meaning "100 rows may differ", becomes "100 % may differ" and passes almost anything — a control test that has stopped controlling. One carrying 0.02 becomes far stricter than intended. Neither announces itself; the tests keep running and keep reporting a colour.

The conversion is pct = absolute * 100 / expected, which is not usable by hand because expected is not a property of the test — it is measured afresh on every run. Run the assessment instead:

psql -h <host> -U <user> -d sqlmaestro -f control-test-tolerance-assessment.sql

Read-only, creates nothing, safe on production. It replays that installation's own control_test_run history under both rules and reports, per test, how many stored results would have come out differently — separating flips_to_pass (a check that stops catching things) from flips_to_fail (noisy but visible) — which tests cannot be converted at all and why, and a suggested UPDATE for each one that can, using the median expected so one unusual run cannot set the tolerance for everything.

Its section 0 refuses to give advice on an installation that is already patched: tolerances there are already percentages and converting again would divide them a second time, turning 2 % into 0.2 %. control_test_passes() exists only after the patch, so its presence is the tell.

Convert the tolerances first, then apply the patch. The other order leaves the tests misinterpreted for the length of that window.

Not evaluated is not the same as failed¶

1b207c554 — shipped in server patch e45c8bfc5 (5 September 2026); not yet in a numbered server image. get_control_test_status_by_nm folded "no verdict yet" into the failure count, so a test that had not run looked like a test that had failed. It now counts three states, and the same treatment is applied to parent nodes by the rollup.

Failures are no longer swallowed¶

237078346 — shipped in server patch e45c8bfc5 (5 September 2026); not yet in a numbered server image. set_actual_test_value_by_test_nm used to RETURN(-1) when the evaluation raised — and no caller checked the return code, so a control test that could not be evaluated was indistinguishable from one that passed. It now re-raises with a named message, and the engine checks the return code.

The rollup¶

rollup_controls2() computes the colour of every P and S node from its children. The meta-service calls it on a timer (PG.rollup_abc, CONFIG_ABC_ROLLUP_SECONDS); nothing else calls it.

Condition	Colour	`test_passed_ind`
any declared child has no verdict yet	`NULL`	`NULL`
every child green	`G`	`TRUE`
every child red	`R`	`FALSE`
all present but mixed	`Y`	`FALSE`

Eight defects fixed in 37e681159 — shipped in server patch e45c8bfc5 (5 September 2026); not yet in a numbered server image. Two of them made the tree report a healthy parent over unhealthy or absent children:

False green over children that never ran. The batch_run_num predicate sat in the WHERE clause of a LEFT OUTER JOIN, which silently demotes it to an inner join, so a child with no result row left the aggregate entirely instead of counting as "not ready". Measured: a parent with five declared children, four never run and one green, computed GREEN.
Counts multiplied by the parent's own history. A second join contributed nothing to the SELECT list but multiplied every row by the number of run rows the parent already had. Measured: two green children reported as 6 after three prior runs — and that inflated figure was written into the parent's expected_value/actual_value, so the number on the dashboard grew with every rollup.

Plus: "not yet run" recorded as "failed"; open jobs cancelled based on the open batch count (a copy-paste typo, and on the fresh-batch path that variable is never assigned, making the test NULL); a fixed ten-pass loop with no exit, now a fixpoint that warns if its cap is reached; a failure reported only as a NOTICE — below the default log_min_messages, so the reason a rollup was cancelled reached no log at all — now a WARNING plus a durable make_error_message row; l_runs_today counting every batch run in the installation and never being read; and debug output hardcoded on.

The same open-jobs typo exists in measure_abc_spaceused and measure_batch_runs_per_week. Both are dead — nothing in the tree calls either — so they are corrected in initdb.sql but deliberately left out of the migration.

Lookup and error paths¶

d3a6553c4 — shipped in server patch e45c8bfc5 (5 September 2026); not yet in a numbered server image. make_control_test_run_by_id / _by_nm looked the test up with control_test_type_cd IN ('C','L','U','B'), which conflated two different problems:

a test of type I — implemented by control_test_passes but excluded here — found no row;
a P/S node was reported as "could not find the control_test", which is false: the row is plainly in the table.

Both then landed on a RAISE EXCEPTION that interpolated p_test_nm, which is not a parameter of make_control_test_run_by_id. PL/pgSQL resolves identifiers lazily, so the function created cleanly and only died when the error path ran, with column "p_test_nm" does not exist instead of the diagnostic the operator needed.

The filter is gone from the lookup and the type is checked immediately after the fetch, where it can be named. That also closed a silent path: with no check at all, a call carrying a NULL expected or actual skips the comparison entirely and inserts a run row for a rollup node without complaint, because control_test_passes — the only thing that would have objected — is reached only when both values are present.

make_control_test_run_by_num does no comparison despite the name; it only inserts the run row, so it has no tolerance or type concern.

Known-broken, deliberately untouched¶

set_control_test_run_results has zero callers and is broken independently of any of this: SELECT … INTO three variables from two columns with no WHERE clause, so it reads an arbitrary control_test row, and its L/U branches ignore tolerance entirely. Fixing dead code adds risk without benefit — but it is a trap for anyone who wires it up later.

Delivery¶

initdb.sql runs only on a fresh install, so these files are the route onto an existing system. All are idempotent, change no table and no data, and need no restart — the engine and meta-service call these functions by name.

File	What it carries
`control-test-tolerance-assessment.sql`	Read-only. The pre-flight above. Run it first.
`control-test-tolerance-pct.sql`	`control_test_passes()` + all four callers repointed; the lookup and type-check fixes
`control-test-rollup-fix.sql`	`rollup_controls2()`

psql -h <host> -U <user> -d sqlmaestro -f control-test-tolerance-assessment.sql   # read-only, first
#   ... review, convert tolerances ...
psql -h <host> -U <user> -d sqlmaestro -f control-test-tolerance-pct.sql
psql -h <host> -U <user> -d sqlmaestro -f control-test-rollup-fix.sql

Verifying¶

-- the comparison function exists and behaves
SELECT control_test_passes('C',1000,1010,2) AS within,   -- t
       control_test_passes('C',1000,1050,2) AS beyond;   -- f

-- an unhandled type is named, not silently passed
SELECT control_test_passes('P',100,100,0);               -- raises

For the rollup, the honest test is a parent whose children are only partly evaluated: it must come back NULL, not green, and its expected_value must equal the number of declared children.

A dropped connection is retried once¶

Both MMS control-test failures of September 2026 (2 Sept: a test failed between two that passed on the same connection in the same second; 10 Sept: a test wrote its expected value and never wrote the actual, and the batch hung for three hours) were the pooled Redshift connection failing under the query, not the query. Since 2026-09-11 (runControlTest):

a control-test query that dies of a transport-level failure marks the connection broken, closes it, re-connects and runs the same query once more, logging Control test query failed on a dropped connection; re-connecting and retrying once;
any other failure (bad SQL, permissions, no rows) is not retried and fails the step as before;
the step holds its connection for both the expected and the actual query and releases it once, in its own finally — the earlier release inside runControlTest is gone. That inner release was the double-release that let a parallel step onto the same socket (see ENGINE.md, JDBC socket timeout and broken-connection handling).

Variables in control-test SQL: the expected and actual queries go through the same getVarData resolution as every other SQL step, so $BATCH_START_DATA_VALIDITY_TIMESTAMP, $BATCH_END_DATA_VALIDITY_TIMESTAMP and the other run-history variables (VARIABLES.md) can be used directly — quote them, they resolve to bare yyyy-MM-dd HH:mm:ss text. They are set once per run, so a source count bounded with < '$BATCH_END_DATA_VALIDITY_TIMESTAMP' sees the same window the extract used, even if rows arrived in the source after the pull. The editor's Test button sends the raw SQL and will fail on a variable; the runtime resolves it.

Control tests travel with the workflows (migration)¶

To move control tests from one environment to another, export the workflows that use them: Administration ▸ Migration ▸ Export Workflow(s) (client 2.5.8 or later) collects every test a CONTROLTEST step in the exported workflows refers to, plus its parents in the control-test tree, and writes them into the .eltmx next to the workflows. Import Workflow(s) on the target (server patch 604cecae4 or later) writes the tests by name, creating missing ones with a local id and replacing existing ones in place, then rewrites each step's <controlTestId> to that local id. The operator walkthrough, the report lines and the error table are in UG-ADMIN.md — Migrating workflows between environments.

What travels and what does not:

Travels	Does not travel
definition, category, type, tolerance, expected and actual queries, the two connection names	run history (`control_test_run`) — the target starts fresh
tree edges between tests that travel	a test no exported step refers to (create it on the target by hand)
the id as a hint only — the target issues its own	the values behind a connection the target already has (they are kept)

Two facts drove the design:

Ids are per environment. seq_control_test_id starts at 2001 everywhere, so an exported id is meaningless on the target and can collide with an unrelated test — which would then run the wrong queries under the right name and report green. The name is what the engine already uses for every result write (set_expected_test_value_by_test_nm, get_control_test_status_by_nm); only ControlTestStepMeta.initialize() looks the definition up by id, hence the rewrite.
The query columns hold base64. The client encodes expected_value_query / actual_value_query on save and the engine decodes on run; the export carries them decoded, so the import re-encodes. Storing them plain makes every migrated test record NO result rows.

Verified between two servers on 2026-09-15: tests built in the client on dev1 (ids 2004/2005), exported, imported on a second server where they became 2002/2003, the workflow run there with both tests writing results.

Code map¶

Concern	Where
Engine step	`engine/steps/common/global/ControlTest.java`
Engine calls	`share/PG.java` — `set_actual_test_value_by_test_nm`, `get_control_test_status_by_nm`
Rollup trigger	`root-engine-service` `PG.rollup_abc` (timer)
Client editor	`GeneralWindow/ControlTestEditorWindow.xaml.cs`, `ControlTestManager.xaml.cs`
Comparison	`control_test_passes()` in `initdb.sql`
