Data Model — the execution spine (column-level)

The column-level model of ELTMaestro's core: the execution tables (batch → run → job leg → step), the control-test tables, and the connection anchors. This is the part a warehouse model or a reporting join has to get right.

For the full object inventory (the 72 code-referenced tables + views, by domain, with design-vs-runtime and layer ownership) see DATA-MODEL.md.

Every table also carries the standard audit tail — create_ts, last_upd_ts, created_by_user (default current_user), upd_by_user — omitted from the dictionaries below to keep the meaningful columns legible. Type shorthand: varchar N = character varying(N), char N = character(N), ts = timestamp.

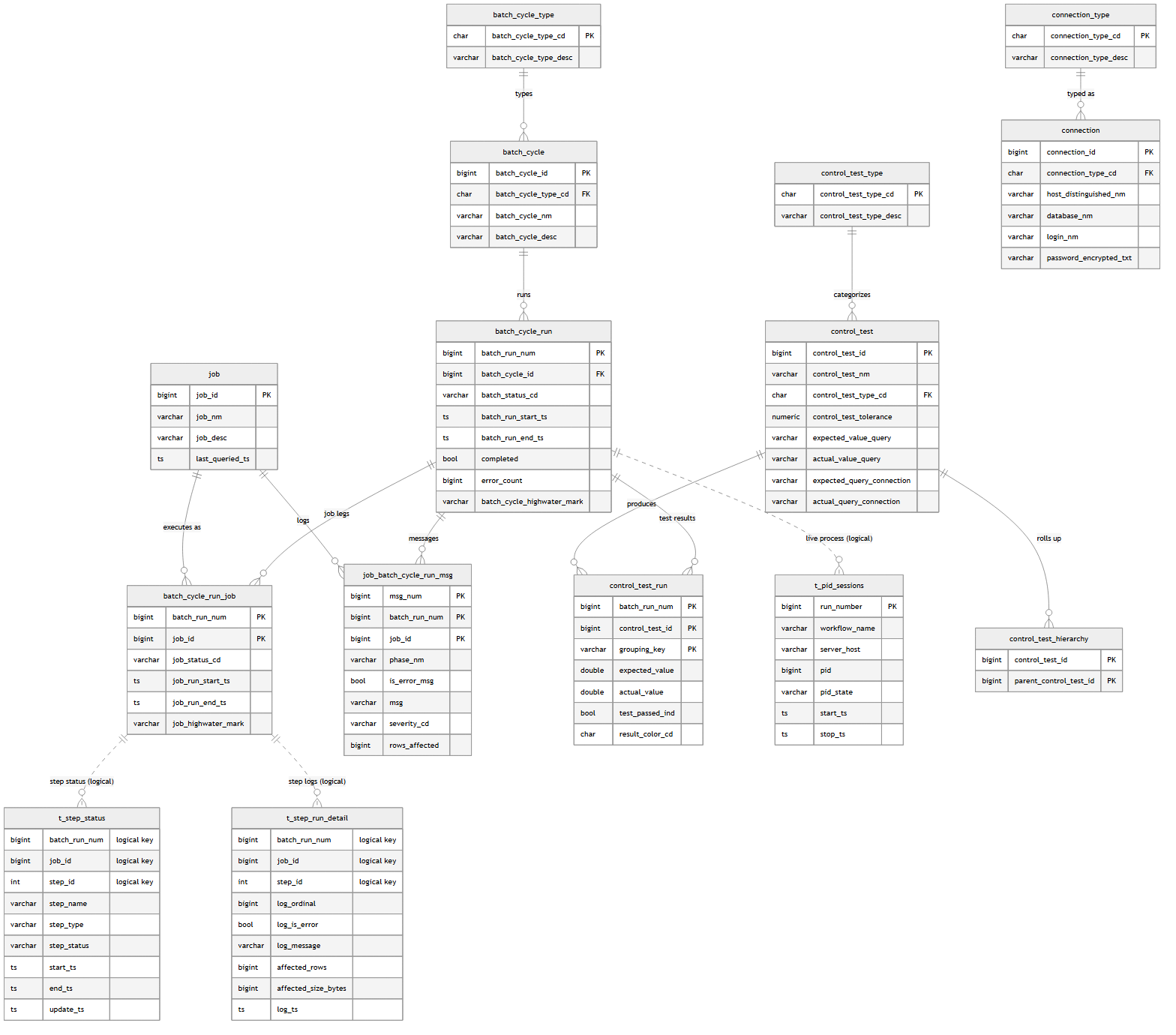

Entity–relationship diagram

Solid lines are declared foreign keys in initdb.sql; dashed lines are logical joins with no enforced FK. On composite keys, members are marked PK; their FK role is carried by the relationship edge.

The link table control_test_point (the only control_test ↔ connection join) is excluded — it has no code reference and is reached only via dynamic SQL, so it is not drawn here. See DATA-MODEL.md → Excluded.

📄 Download the ERD as a PDF (vector, print-friendly).

Diagram source (Mermaid) — edit this and re-render images/data-model-spine.png

erDiagram
  batch_cycle_type ||--o{ batch_cycle : "types"
  batch_cycle ||--o{ batch_cycle_run : "runs"
  batch_cycle_run ||--o{ batch_cycle_run_job : "job legs"
  batch_cycle_run ||--o{ job_batch_cycle_run_msg : "messages"
  batch_cycle_run ||--o{ control_test_run : "test results"
  batch_cycle_run ||..o{ t_pid_sessions : "live process (logical)"
  job ||--o{ batch_cycle_run_job : "executes as"
  job ||--o{ job_batch_cycle_run_msg : "logs"
  batch_cycle_run_job ||..o{ t_step_status : "step status (logical)"
  batch_cycle_run_job ||..o{ t_step_run_detail : "step logs (logical)"
  control_test_type ||--o{ control_test : "categorizes"
  control_test ||--o{ control_test_hierarchy : "rolls up"
  control_test ||--o{ control_test_run : "produces"
  connection_type ||--o{ connection : "typed as"

  batch_cycle_type {
    char batch_cycle_type_cd PK
    varchar batch_cycle_type_desc
  }
  batch_cycle {
    bigint batch_cycle_id PK
    char batch_cycle_type_cd FK
    varchar batch_cycle_nm
    varchar batch_cycle_desc
  }
  batch_cycle_run {
    bigint batch_run_num PK
    bigint batch_cycle_id FK
    varchar batch_status_cd
    ts batch_run_start_ts
    ts batch_run_end_ts
    bool completed
    bigint error_count
    varchar batch_cycle_highwater_mark
  }
  batch_cycle_run_job {
    bigint batch_run_num PK
    bigint job_id PK
    varchar job_status_cd
    ts job_run_start_ts
    ts job_run_end_ts
    varchar job_highwater_mark
  }
  job {
    bigint job_id PK
    varchar job_nm
    varchar job_desc
    ts last_queried_ts
  }
  job_batch_cycle_run_msg {
    bigint msg_num PK
    bigint batch_run_num PK
    bigint job_id PK
    varchar phase_nm
    bool is_error_msg
    varchar msg
    varchar severity_cd
    bigint rows_affected
  }
  t_step_status {
    bigint batch_run_num "logical key"
    bigint job_id "logical key"
    int step_id "logical key"
    varchar step_name
    varchar step_type
    varchar step_status
    ts start_ts
    ts end_ts
    ts update_ts
  }
  t_step_run_detail {
    bigint batch_run_num "logical key"
    bigint job_id "logical key"
    int step_id "logical key"
    bigint log_ordinal
    bool log_is_error
    varchar log_message
    bigint affected_rows
    bigint affected_size_bytes
    ts log_ts
  }
  t_pid_sessions {
    bigint run_number PK
    varchar workflow_name
    varchar server_host
    bigint pid
    varchar pid_state
    ts start_ts
    ts stop_ts
  }
  control_test_type {
    char control_test_type_cd PK
    varchar control_test_type_desc
  }
  control_test {
    bigint control_test_id PK
    varchar control_test_nm
    char control_test_type_cd FK
    numeric control_test_tolerance
    varchar expected_value_query
    varchar actual_value_query
    varchar expected_query_connection
    varchar actual_query_connection
  }
  control_test_hierarchy {
    bigint control_test_id PK
    bigint parent_control_test_id PK
  }
  control_test_run {
    bigint batch_run_num PK
    bigint control_test_id PK
    varchar grouping_key PK
    double expected_value
    double actual_value
    bool test_passed_ind
    char result_color_cd
  }
  connection_type {
    char connection_type_cd PK
    varchar connection_type_desc
  }
  connection {
    bigint connection_id PK
    char connection_type_cd FK
    varchar host_distinguished_nm
    varchar database_nm
    varchar login_nm
    varchar password_encrypted_txt
  }

D1. Execution — column dictionaries

Keys: PK primary key · FK foreign key · LOG logical (unenforced) key.

batch_cycle — batch header (PK batch_cycle_id, seq seq_batch_cycle_id)

Column	Type	Key	Null / default
batch_cycle_id	bigint	PK	NOT NULL
batch_cycle_type_cd	char 5	FK → batch_cycle_type	—
batch_cycle_nm	varchar 255		—
batch_cycle_desc	varchar 255		—

batch_cycle_run — one row per run (PK batch_run_num, seq seq_batch_run_num)

Column	Type	Key	Null / default
batch_run_num	bigint	PK	NOT NULL
batch_cycle_id	bigint	FK → batch_cycle	—
batch_status_cd	varchar 12		NOT NULL
batch_run_start_ts	ts		NOT NULL now()
batch_run_end_ts	ts		—
batch_cycle_data_validity_ts	ts		now()
batch_cycle_highwater_mark	varchar 60		—
batch_cycle_lowwater_mark	varchar 60		—
completed	bool		NOT NULL false
error_count	bigint		NOT NULL 0

batch_cycle_run_job — job leg within a run (PK (batch_run_num, job_id))

Column	Type	Key	Null / default
batch_run_num	bigint	PK · FK → batch_cycle_run	NOT NULL
job_id	bigint	PK · FK → job	NOT NULL
job_status_cd	varchar 20		NOT NULL
job_run_start_ts	ts		NOT NULL now()
job_run_end_ts	ts		—
job_highwater_mark / job_lowwater_mark	varchar 60		—

job — job registry (PK job_id, seq seq_job_id)

Column	Type	Key	Null / default
job_id	bigint	PK	NOT NULL
job_nm	varchar 80		NOT NULL
job_desc	varchar 255		—
last_queried_ts	ts		—

job_batch_cycle_run_msg — per-run messages (PK (msg_num, batch_run_num, job_id))

Column	Type	Key	Null / default
msg_num	bigint	PK	NOT NULL
batch_run_num	bigint	PK · FK → batch_cycle_run	NOT NULL
job_id	bigint	PK · FK → job	NOT NULL, default 0
phase_nm	varchar 500		NOT NULL
msg	varchar 4096		NOT NULL
is_error_msg	bool		NOT NULL false
severity_cd	varchar 10		—
data_snippet	varchar 1024		—
phase_id / rows_affected	bigint		default 0

t_step_status — latest status per step (no PK/FK; logical key (batch_run_num, job_id, step_id))

Column	Type	Key	Null / default
batch_run_num	bigint	LOG	NOT NULL
job_id	bigint	LOG	NOT NULL
step_id	int	LOG	NOT NULL
step_name	varchar 128		NOT NULL
step_type	varchar 128		NOT NULL
step_status	varchar 64		NOT NULL
start_ts / end_ts	ts		—
create_ts / update_ts	ts		NOT NULL now()

t_step_run_detail — per-step log lines (no PK/FK; logical key + log_ordinal)

Column	Type	Key	Null / default
batch_run_num / job_id / step_id	bigint / int	LOG	NOT NULL
step_name / step_type	varchar 128		NOT NULL
log_ordinal	bigint		NOT NULL
log_is_error	bool		NOT NULL false
log_message / log_message_stack	varchar 65535		default ''
affected_rows / affected_size_bytes	bigint		—
log_ts	ts		NOT NULL now()

t_pid_sessions · t_step_watermark · t_workflow_state_history

Table.Column	Type	Key	Null / default
t_pid_sessions.run_number	bigint	PK	NOT NULL
t_pid_sessions.pid_state	varchar 8		NOT NULL 'ACTIVE'
t_pid_sessions.workflow_name / server_host	varchar 256		—
t_pid_sessions.pid	bigint		—
t_step_watermark.watermark_name	varchar 128	PK	NOT NULL
t_step_watermark.watermark_value	varchar 512		'' · holds full S3 folder path (PushFile)
t_workflow_state_history.(run_seq_number, run_number, job_id)	bigint	UQ idx	1-second collision guard — see G8
t_workflow_state_history.status_code / status_value	varchar 32		—

D2. Control tests — column dictionaries

control_test — test master (PK control_test_id, seq seq_control_test_id)

Column	Type	Key	Null / default
control_test_id	bigint	PK	NOT NULL
control_test_nm	varchar 80		NOT NULL
control_test_type_cd	char 1	FK → control_test_type	—
control_test_category	varchar 60		—
control_test_tolerance	numeric(8,2)		—
expected_value_query / actual_value_query	varchar 2000		—
expected_query_connection / actual_query_connection	varchar 80		NOT NULL 'DEFAULT' · connection by name
xloc / yloc	double		0 · canvas layout
nodecolor	int		1 · canvas layout

control_test_run — result per run (PK (batch_run_num, control_test_id, grouping_key))

Column	Type	Key	Null / default
batch_run_num	bigint	PK · FK → batch_cycle_run	NOT NULL
control_test_id	bigint	PK · FK → control_test	NOT NULL
grouping_key	varchar 160	PK	NOT NULL '~'
expected_value / actual_value	double		—
test_passed_ind	bool		— · pass/fail
result_color_cd	char 1		—

control_test_hierarchy · control_test_type

control_test_point is excluded from the model (no code reference, dynamic SQL only) — its columns are omitted here. For reference it keys on (control_test_id, actual_or_expected) with FKs to control_test and connection; that is the schema's connection-by-id path noted in G5.

Table.Column	Type	Key	Null / default
control_test_hierarchy.control_test_id	bigint	PK · FK → control_test	NOT NULL
control_test_hierarchy.parent_control_test_id	bigint	PK · FK → control_test (self)	NOT NULL
control_test_type.control_test_type_cd	char 1	PK	NOT NULL

D3. Connections & catalog — column dictionaries

connection — legacy master (PK connection_id, seq seq_connection_id)

Column	Type	Key	Null / default
connection_id	bigint	PK	NOT NULL
connection_type_cd	char 1	FK → connection_type	NOT NULL
host_distinguished_nm	varchar 80		NOT NULL
database_instance_nm / database_nm	varchar 128		—
login_nm	varchar 255		—
password_encrypted_txt	varchar 255		—

t_jdbc — modern JDBC registry (PK connection_id — char(32), not the bigint; no FK to connection)

Column	Type	Key	Null / default
connection_id	char 32	PK	NOT NULL · hash/UUID, separate namespace
connection_name	varchar 128		NOT NULL
connection_string	varchar 256		NOT NULL
jdbc_driver_name / jdbc_driver_jar	varchar 128 / 256		NOT NULL
user_name / password64	varchar 128 / 256		NOT NULL · base64 password

t_connection_general · connection_type · t_job_meta · t_job_meta_history

Table.Column	Type	Key	Null / default
t_connection_general.connection_name	varchar 256	PK	NOT NULL
t_connection_general.connection_type_name	varchar 128		NOT NULL · type by name
t_connection_general.connection_parameters	varchar 16384		NOT NULL · param blob (incl. SMTP recipients)
connection_type.connection_type_cd	char 1	PK	NOT NULL
t_job_meta.job_name	varchar 1024	PK	NOT NULL
t_job_meta.lock_id	varchar 512		'' · edit lock (lock_job fn)
t_job_meta.job_type / job_platform	varchar 64		NOT NULL ''
t_job_meta_history.version_key	bigint	PK	seq seq_job_version_id
t_job_meta_history.version_path	varchar 1024		'' · pointer to the versioned XML file

D4. DQ metrics — column dictionary

metrics.data_quality_metrics — metric rows per run (no declared PK; ordinal = seq_data_quality_metrics)

Column	Type	Key	Null / default
run_number / job_id	bigint		nullable — loose link to the run
step_id	int		nullable
step_type	varchar 64		—
metrics_object	varchar 256		—
metrics_type	varchar 32		Source_Count / Target_Count / …
metrics_key	varchar 64		'none'
metrics_value	bigint		NOT NULL 0
ordinal	bigint	SEQ	NOT NULL nextval(seq)

D5. Complete foreign-key reference

All 15 declared FK constraints in the schema. Everything else joins by convention.

Child table	Column(s)	References	Constraint
batch_cycle	batch_cycle_type_cd	batch_cycle_type	con_fk_batchctype_batchc
batch_cycle_run	batch_cycle_id	batch_cycle	con_fk_batchc_batchcrun
batch_cycle_run_job	batch_run_num	batch_cycle_run	con_fk_btchcrun_btchcrunjob
batch_cycle_run_job	job_id	job	con_fk_job_batchcyclerunjob
job_batch_cycle_run_msg	batch_run_num	batch_cycle_run	con_fk_bcycrun_jobbcyclernmsg
job_batch_cycle_run_msg	job_id	job	con_fk_job_batchcyclerunmsg
connection	connection_type_cd	connection_type	con_fk_conntype_connectiontypecd
connection2	connection_type_cd	connection_type	con_fk_conntype_connectiontypecd
control_test	control_test_type_cd	control_test_type	con_fk_cntrltesttyp_cntrltest
control_test_point	control_test_id	control_test	con_fk_cntltest_cntltestpoint
control_test_point	connection_id	connection	con_fk_connection
control_test_hierarchy	control_test_id	control_test	fk_control_test_hierarchy_control_test
control_test_hierarchy	parent_control_test_id	control_test	…_control_test22 (self-ref)
control_test_run	control_test_id	control_test	con_fk_cntltestrun_cntltest
control_test_run	batch_run_num	batch_cycle_run	fk_control_test_run_batch_cycle_run

D6. Modeling gotchas

Structural facts that will bite anyone writing joins or standing up a warehouse model. Several map directly to bugs already fixed in the client.

G1 — Two connection registries, joined by name not id

connection is the legacy master (bigint connection_id, char(1) type code). t_jdbc is the modern registry but its connection_id is char(32) (a hash) with no FK to connection, and t_connection_general is name-keyed with a param blob. Treat "a connection" as two loosely-coupled worlds bridged by connection_name, never by id.

G2 — The step tables have no keys

t_step_status and t_step_run_detail declare neither PK nor FK — keyed only logically on (batch_run_num, job_id, step_id). Nothing enforces integrity to the run, so orphan rows persist; this is why deleted steps linger in the Runtime Status grid (the client fix filters to the live canvas).

G3 — Status is encoded four different ways

batch_status_cd varchar(12), job_status_cd varchar(20), t_step_status.step_status varchar(64), and control tests via test_passed_ind bool + result_color_cd char(1). No shared status domain or lookup table — the root of the LogViewer colour-matching brittleness (the client normalises status to uppercase + substring match to compensate).

G4 — Type-code width drift

Single-char discriminators (connection_type_cd, control_test_type_cd = char(1); batch_cycle_type_cd = char(5)) coexist with name-based typing (t_connection_general.connection_type_name varchar(128)). Same concept, three encodings.

G5 — control_test points at connections two ways

expected_query_connection / actual_query_connection are varchar(80) names (default 'DEFAULT'); control_test_point.connection_id is a bigint FK to connection. One feature, two connection-reference styles.

G6 — metrics.data_quality_metrics is loosely typed

Nullable run_number / job_id / step_id, no declared PK (only an ordinal sequence). Joins back to the run are best-effort — filter out nulls before aggregating.

G7 — Presentation state lives in data tables

control_test.xloc / yloc / nodecolor store canvas layout inside the test definition — the same designer-state-in-the-model concern as the parked JobEditor canvas-comment idea.

G8 — t_workflow_state_history has 1-second key resolution

run_seq_number is only second-granular, so concurrent runs collide; the schema adds a unique index on (run_seq_number, run_number, job_id) to stop state-transition UPDATEs cross-stamping each other. Any model keyed on run_seq_number alone is wrong.

---

See also: DATA-MODEL.md (full object inventory) · ENGINE.md (RunBatch, the step DAG, watermarks, halt) · SCHEMA-PROFILE.md (profiling tables).
