Runtime variables reference

ELTMaestro resolves $VARIABLE tokens in step configuration, SQL, and shell commands through getVarData(). This page is the full catalog of variables initialized at batch and job scope, plus the platform config variables loaded from system.cfg.

How resolution works

BaseStep.getVarData(input) walks every scope in this order, each seeing the output of the last (BaseStep.resolveScopes):

1. Step scope — stepVariables, present only when step scope applies to this step. Absent on the overwhelming majority of runs.
2. Batch scope — PG.globalVariable ($BATCH_*).
3. $STEPID is replaced with the current step id.
4. Job scope — job.jobVariables (everything else below).
5. Parent-job scope — job.parentVariables (inherited when a job is launched by another job).

Because substitution is destructive — a name is replaced the first time a scope defines it — the first scope to define a name wins, and later scopes see text in which that token no longer appears. So step beats batch beats job beats parent.

Fixed 2026-09-02 (7993c8ff8) — shipped in server patch e45c8bfc5 (5 September 2026); not yet in a numbered server image. Two defects in this chain, both of which produced a silently wrong value rather than an error:

• Any text containing $var_ (the default job-variable prefix seeded by the client, $VAR_0…4) was resolved against job scope alone and returned early. One job variable anywhere in a string — even inside a comment — sent $BATCH_START_DATA_VALIDITY_TIMESTAMP to the warehouse as a literal. Against a varchar watermark column that compares cleanly and loads nothing, or everything, with the batch reporting COMPLETE either way.
• JobStep flattened a child's inherited package own-then-inherited, and addVariable overwrites, so a grandparent's value beat the immediate parent's. Now one flattenForChild().

Still open from that audit: batch scope beats job scope, which is the reverse of the step → job → batch precedence one might expect; and the non-step-aware JdbcConnection.execute(String) overloads apply no substitution at all.

Values are substituted by literal string replace (multiple passes), so a variable's value may itself reference other variables as long as they are defined earlier in the same scope. Within each scope the substitution is longest-name-first — names are replaced in descending length order — so a variable whose name is a prefix of another (e.g. $var_1 vs $var_11) is never partially substituted.

Template tokens vs variables. Strings like $TARGET, $COLUMN, $SELECT_QUERY that appear inside the $QUERY_* / $LOAD_COMMAND templates below are step-level placeholders, filled in by the step at execution time — they are not stored variables. They are listed at the end.

Runtime log. At batch init the engine logs a ---- Runtime variables ---- block with the resolved cutoff, original ($BATCH_* / $JOB_*) and platform-specific values only. Scope/config ($SYSTEM_*, $QUERY_*, other system.cfg), connection ($cloud/$jdbc/$ssh.*) and env vars are omitted, and secrets (password / private-key / token) are never printed.

---

Batch scope — $BATCH_*

Set once per batch run in EngineState.initializeEngine (the only writer of PG.globalVariable).

Variable	Description
$BATCH_NAME	Name of the running batch/workflow (the top job's name).
$BATCH_ID	Numeric batch identifier from the metadata database.
$BATCH_RUN_NUMBER	Unique run number for this execution; also names the halt file.
$BATCH_START_DATA_VALIDITY_TIMESTAMP	Start of the data-validity window for the batch type (incremental-load lower bound).
$BATCH_END_DATA_VALIDITY_TIMESTAMP	End of the data-validity window (upper bound).
$BATCH_DATA_VALIDITY_PERIOD	Configured validity period/grain for the batch type.
$BATCH_HIGH_WATERMARK_VALUE	Batch-scoped high watermark (max of the incremental range).
$BATCH_LOW_WATERMARK_VALUE	Batch-scoped low watermark (min of the incremental range).
$BATCH_HIGHDATE	Sentinel far-future date 9999-12-31 (SCD2 open-ended end date). The variable is 9999-12-31 on every platform; the ClickHouse SCD2 step nevertheless stamps its current rows 2099-12-31 23:59:59, because ClickHouse DateTime ends in 2106 — see SCD2.

Batch cycle type — the data-validity window

The $BATCH_*_DATA_VALIDITY_TIMESTAMP values above are derived from the workflow's batch cycle type — the cadence the batch is meant to run at. The type selects the grain of the data-validity window (START/END) and the $BATCH_DATA_VALIDITY_PERIOD that incremental steps use as their lower/upper bounds; the timestamps are computed by database functions keyed on the type.

Types come from the server-side batch_cycle_type catalog (the values shown in the client's Change Batch Cycle Type dropdown). The default is ONREQ. The full catalog:

Code	Cadence
ONREQ	Runs as required — on demand, no fixed cycle (default).
00MIN	Continuous, real-time.
30SEC	Every 30 seconds (on the 0th and 30th second of each minute).
01MIN	Every minute (on the 0th second).
05MIN	Every 5 minutes (00, 05, 10 … 55 past the hour).
15MIN	Every 15 minutes (00, 15, 30, 45 past the hour).
30MIN	Twice an hour (00 and 30 past the hour).
HOUR	Every hour (at the 00-minute mark).
DAILY	Once a day.
WEEK	Weekly, on the scheduled day.
WEEKM	Weekly on Mondays.
WEEKT	Weekly on Tuesdays.
WEEKW	Weekly on Wednesdays.
WEEKH	Weekly on Thursdays.
WEEKF	Weekly on Fridays.
WEEKS	Weekly on Saturdays.
WEEKU	Weekly on Sundays.
MONTH	Once per calendar month, on the scheduled day-of-month.
F_MON	First day of each calendar month.
M_MON	15th (mid) day of each calendar month.
L_MON	Last day of each calendar month.
F_QTR	First day of each calendar quarter.
L_QTR	Last day of each calendar quarter.
FYEAR	First day of each calendar year.
LYEAR	Last day of each calendar year.
FFMON	First day of each fiscal month.
LFMON	Last day of each fiscal month.
FFQTR	First day of each fiscal quarter.
LFQTR	Last day of each fiscal quarter.
FFYER	First day of each fiscal year.
LFYER	Last day of each fiscal year.

The type labels the workflow's intended cadence and drives its data-validity window; the actual firing of scheduled runs is configured separately in Administration ▸ Scheduler (cron). A site can add or remove entries in batch_cycle_type, so the dropdown reflects that catalog.

How a workflow gets its type — resolved at runtime by precedence: the launch CLI --type flag > the job XML <batchType> element > the type stored in the metadata DB > ONREQ. The job XML value is what you set in the client: right-click the workflow ▸ Action(s) ▸ Change Batch Cycle Type (see Workflows — right-click actions). It writes <batchType> into the job and syncs batch_cycle_type_cd in the DB.

Batch cutoff windows — $BATCH_LAST_SUCCESS_RUN_TS / $BATCH_CUTOFF_*

Also set in EngineState.initializeEngine (via PG.getBatchCutoffWindows(batchId)), these give incremental processing windows derived from this batch's last successful run. $BATCH_LAST_SUCCESS_RUN_TS is the max(last_upd_ts) of COMPLETE rows for the batch (1970-01-01 if none). For each grain, START = date_trunc(grain, last_success) - 1 grain (a lookback that catches late-arriving data and auto-recovers gaps across failed runs) and END = date_trunc(grain, now()) (only fully-elapsed periods; the in-progress one is excluded). The window rolls forward automatically as successful runs advance last_success — no extra state is stored. Format yyyy-MM-dd HH:mm:ss.

The first-run sentinel is 1970-01-01 00:00:00 everywhere — since 916147345, shipped in server patch e45c8bfc5 (5 September 2026); not yet in a numbered server image. Three different values used to mean "never ran": 1969-12-31, 1970-01-01 and 1990-01-01, depending on which path produced it, so code comparing against one of them silently missed the others. They are now one value, with Helper.isFirstRunDataValidityTs() recognising the legacy spelling for anything already stored.

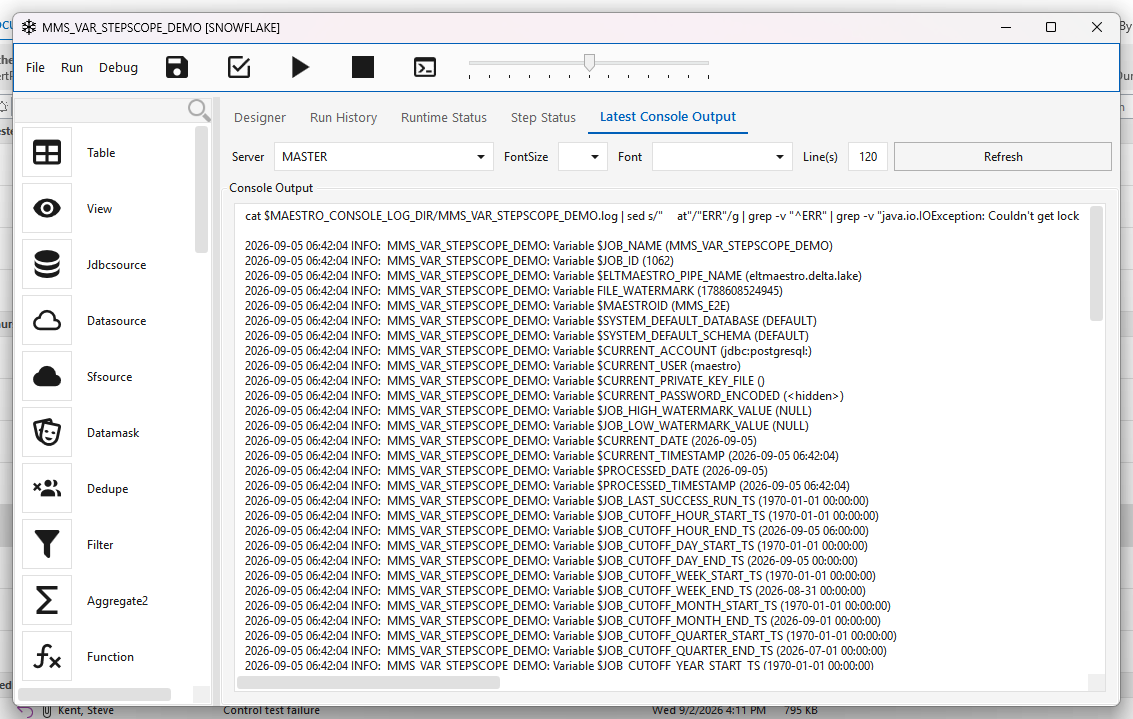

What a never-run job's variables look like in the console — $JOB_LAST_SUCCESS_RUN_TS and every $JOB_CUTOFF_*_START_TS at the epoch, the *_END_TS values current:

The sentinel is owned by the database functions, not the jar. initdb.sql runs only on a fresh install, so an installation that has not had the watermark function patch applied still returns the old values however new its engine is. Check with select calc_end_data_validity_ts('__NO_SUCH_BATCH__'); — it must return 1970-01-01 00:00:00.

Variable	Description
$BATCH_LAST_SUCCESS_RUN_TS	Timestamp of this batch's most recent COMPLETE run (1970-01-01 if never).
$BATCH_CUTOFF_HOUR_START_TS / $BATCH_CUTOFF_HOUR_END_TS	Hour-grain window [trunc(hour,last_success)-1h, trunc(hour,now)).
$BATCH_CUTOFF_DAY_START_TS / $BATCH_CUTOFF_DAY_END_TS	Day-grain window [trunc(day,last_success)-1d, trunc(day,now)).
$BATCH_CUTOFF_WEEK_START_TS / $BATCH_CUTOFF_WEEK_END_TS	Week-grain window (week starts Monday).
$BATCH_CUTOFF_MONTH_START_TS / $BATCH_CUTOFF_MONTH_END_TS	Month-grain window.
$BATCH_CUTOFF_QUARTER_START_TS / $BATCH_CUTOFF_QUARTER_END_TS	Quarter-grain window (lookback = 3 months).
$BATCH_CUTOFF_YEAR_START_TS / $BATCH_CUTOFF_YEAR_END_TS	Year-grain window.

---

Job scope — identity & platform

Set in Job.java while parsing the job document and connecting to the platform.

Variable	Description
$JOB_NAME	Name of the current job.
$JOB_ID	Numeric job id.
$JOB_TYPE	Platform/job type code (e.g. CLICKHOUSE, REDSHIFT, SNOWFLAKE).
$PLATFORM_ID / $MAESTROID	The MPP (platform) connection id the job targets.
$SYSTEM_DEFAULT_DATABASE	Default target database — seeded from system.cfg, then overridden from the live MPP connection's catalog.
$SYSTEM_DEFAULT_SCHEMA	Default target schema — same seeding/override as above.
$ELTMAESTRO_PIPE_NAME	Corelli pipeline name used in staging paths (default eltmaestro.delta.lake).

Job scope — watermarks & timestamps

Variable	Description
$JOB_HIGH_WATERMARK_VALUE	Job-scoped high watermark (incremental upper bound).
$JOB_LOW_WATERMARK_VALUE	Job-scoped low watermark (incremental lower bound).
$CURRENT_DATE	Job start date, yyyy-MM-dd.
$CURRENT_TIMESTAMP	Job start timestamp, yyyy-MM-dd HH:mm:ss.
$PROCESSED_DATE	Processing date (same value as $CURRENT_DATE).
$PROCESSED_TIMESTAMP	Processing timestamp (same value as $CURRENT_TIMESTAMP).
FILE_WATERMARK	File-based watermark counter. Note: registered without a $ prefix.

Job scope — cutoff windows ($JOB_LAST_SUCCESS_RUN_TS / $JOB_CUTOFF_*)

The job-scope counterpart of the batch cutoff windows, set in initializeJobVariables() via PG.getJobCutoffWindows(jobId). $JOB_LAST_SUCCESS_RUN_TS is the max(last_upd_ts) of this job's COMPLETE rows in batch_cycle_run_job (1970-01-01 if none). Each grain uses the same rule as the batch cutoffs — START = date_trunc(grain, last_success) - 1 grain (late-data lookback + gap recovery), END = date_trunc(grain, now()) (completed periods only). Self-rolling; no extra state. Format yyyy-MM-dd HH:mm:ss.

Variable	Description
$JOB_LAST_SUCCESS_RUN_TS	Timestamp of this job's most recent COMPLETE run (1970-01-01 if never).
$JOB_CUTOFF_HOUR_START_TS / $JOB_CUTOFF_HOUR_END_TS	Hour-grain window [trunc(hour,last_success)-1h, trunc(hour,now)).
$JOB_CUTOFF_DAY_START_TS / $JOB_CUTOFF_DAY_END_TS	Day-grain window.
$JOB_CUTOFF_WEEK_START_TS / $JOB_CUTOFF_WEEK_END_TS	Week-grain window (week starts Monday).
$JOB_CUTOFF_MONTH_START_TS / $JOB_CUTOFF_MONTH_END_TS	Month-grain window.
$JOB_CUTOFF_QUARTER_START_TS / $JOB_CUTOFF_QUARTER_END_TS	Quarter-grain window (lookback = 3 months).
$JOB_CUTOFF_YEAR_START_TS / $JOB_CUTOFF_YEAR_END_TS	Year-grain window.

Job scope — platform-specific runtime

Populated from the connected platform; only present for the relevant $JOB_TYPE.

Variable	Platform	Description
$MPP_HOST / $MPP_PORT	ClickHouse	Load host/port. Taken from system.cfg if set, else the engine falls back to ClickHouse hostName() / tcpPort().
$NZ_XID	Netezza	Last transaction id (_VT_HOSTTXMGR) for consistent partitioned extract.
$NZ_MIN_DSID / $NZ_MAX_DSID	Netezza	Min/max data-slice ids (_v_dslice) for slice-partitioned extract.
$EXA_HOST / $EXA_TOKEN / $EXA_PORT	Exasol	Host / token / port parsed from the connection string.
$CURRENT_ACCOUNT	Snowflake	Session account.
$CURRENT_ROLE	Snowflake	Session role.
$CURRENT_WAREHOUSE	Snowflake	Session virtual warehouse.
$CURRENT_USER	Snowflake	Connection user name.
$CURRENT_PRIVATE_KEY_FILE	Snowflake	Path to the key-pair private key (key-pair auth).
$CURRENT_PASSWORD_ENCODED	Snowflake	Base64-encoded connection password.

Job scope — connection variables (dynamic)

Loaded from the metadata DB (one row per connection parameter) so any configured connection is addressable by name. Namespaced by connection type:

Pattern	Source table	Description
$cloud.<connection>.<param>	t_connection_general	Each parameter of a cloud/general (S3/Blob/…) connection, base64-decoded.
$jdbc.<connection>.user_name	t_jdbc	JDBC connection user name.
$jdbc.<connection>.password	t_jdbc	JDBC connection password (decoded).
$ssh.<connection>.host_name	connection2	SSH host.
$ssh.<connection>.user_name	connection2	SSH login.
$ssh.<connection>.password	connection2	SSH password (decoded).

Job scope — environment variables

initEnvVariables() registers every export VAR=… line from ~/.env_integrator as $VAR, e.g. $PGDIR, $MAESTRO_CONSOLE_LOG_DIR, $ABCJDBCDIR, $MAESTRO_ENGINE_OPTS. (Exact set depends on the install's env_integrator.)

Job scope — user-defined

<jobVariable> elements in the job document become job variables. The $var_<name> convention is the client's default naming (CreateJob.xaml.cs seeds $VAR_0…$VAR_4); it carries no special resolution behaviour. It used to short-circuit the whole chain to job scope, which is the defect described under How resolution works.

Naming trap, still open. A job variable whose name extends a global's — $BATCH_IDX against the built-in $BATCH_ID — is mangled: substitution is longest-name-first within a scope, but batch scope runs before job scope, so $BATCH_ID is replaced inside $BATCH_IDX and the remaining X is left stranded. Avoid naming a job variable with a built-in as its prefix.

---

Step scope — a never-run step backfills

A step added to an existing workflow has no history of its own, but the batch does. Under the plain cutoff rules it would inherit the batch's window and take a small delta — silently skipping everything that existed before it was added. The step looks healthy and its table is short.

Step scope closes that. Before a step runs, the engine asks whether this step has ever reached COMPLETE, keyed on t_step_status(job_id, step_id) — not t_step_watermark. If it never has, the step gets a private variable package in which the fifteen run-history variables are replaced with their first-run values (from PG.getFirstRunCutoffWindows()), so its first execution reads from the epoch and backfills. Every later run uses the normal batch window.

This is unconditional and needs no configuration — a newly-added step backfilling on its first run is the correct default, not an opt-in.

Step scope is the first entry in the resolution chain, so it beats batch scope for those fifteen names and nothing else changes.

It stands down when run variable overrides are active, and says so in the log:

Step scope suppressed: run-history variables were manually overridden for this run (...). The override wins.

Both features exist to control the same window; if both applied the result would depend on ordering, so the explicit instruction wins.

Built in 916147345; test coverage in b4eaca2ae and 0a3e4db58. Shipped in server patch e45c8bfc5 (5 September 2026); not yet in a numbered server image.

---

Run variable overrides — one-shot manual seeding

The run-history variables are derived, so during development there is no way to ask "what would this load if the batch had last succeeded in January?" short of editing the audit database by hand.

A developer can seed them for a single run from the client's Run dialog (Run Variable Overrides (this run only)), or by dropping the file the dialog writes:

$MAESTRO_TMP_DIR/<JOB_NAME>.var.json

The engine loads it during initializeEngine, applies the values, deletes the file, and logs each substitution as computed [...] -> using [...]. The next run computes normally.

Seventeen variables may be overridden — the three $BATCH_*_DATA_VALIDITY_*, both *_LAST_SUCCESS_RUN_TS, and all twelve $BATCH_/$JOB_CUTOFF_*_START_TS. Anything else in the file is skipped with a logged reason, as is a name written without its leading $.

Absent file == today's behaviour exactly, and a malformed, expired, wrong-job or unreadable file is logged, deleted and ignored — never fatal. A development convenience that can break a production run is worse than no feature.

Full walkthrough, file format and safety properties: Run Variable Overrides user guide.

Engine half 4dddec7b1 — shipped in server patch e45c8bfc5 (5 September 2026); not yet in a numbered server image. Client half 622f148d1 — desktop client 2.5.5.20260905.

---

Platform config variables — system.cfg

loadConfiguration() loads every KEY=value line from metadata/integrators/<jobType>/system.cfg into job scope. These differ per platform; the tables below give the canonical meaning (representative values shown).

System / identity

Variable	Description
$SYSTEM_ALIAS	Human-readable platform name shown in the client (e.g. "Clickhouse OLAP System").
$SYSTEM_NAME	Internal platform code (e.g. REDSHIFT).
$SYSTEM_DEFAULT_DATABASE / $SYSTEM_DEFAULT_SCHEMA	Default target DB/schema for the platform (overridable by the connection).
$SYSTEM_DEFAULT_SSH_CONNECTION	Named SSH connection used for platform shell operations (e.g. SYSTEM_SSH).
$SYSTEM_TOKEN_ENCLOSER	Identifier quote character — ` for ClickHouse/Spark, " for the rest. Drives BaseMeta.quote().
$SYSTEM_LARGE_OBJECT_ROWS	Row count above which a table is treated as "large" (affects load strategy).
$SYSTEM_VIEW_MATERIALIZATION_THRESHOLD	Controls when a view is materialized vs. kept virtual.
$SYSTEM_STATISTICS_THRESHOLD	Row count above which statistics/ANALYZE is run.
$MAX_CACHE_SIZE	Max rows the cache-builder / preview materializes.
$SCHEMALOADERPARTSIZEBYTES	Part-file size in bytes for schema/bulk loaders (268435456 = 256 MB).
$DATAMASK_TAGS	Comma list of column tags that trigger masking (MASK,PII,GDPR,HIPAA,SOX,PCI-DSS,…).
$INTEGRATOR_HOST	Host the integrator runs on (default localhost).
$ML_BASE	Base path for ML artifacts (e.g. /ml).

SCD change-detection hashing

Variable	Description
$HASH_TEMPLATE	Platform SQL expression that hashes $ARG for SCD change detection (e.g. MD5(...)).
$HASH_RETURNS	Return type of the hash (VARCHAR, CHAR(32), …).
$HASH_EXPRESSION	Full cast wrapper combining $HASH_TEMPLATE and $HASH_RETURNS.

Encoding

Variable	Description
$B64EXPRESSION	Platform SQL that base64-decodes $COLUMN back to $DATATYPE (Corelli encoded-extract decode). Vendor-specific: ClickHouse base64Decode(...), Redshift FROM_VARBYTE(TO_VARBYTE(...)), Snowflake base64_decode_string(...), Spark unbase64(...).

DDL / query templates — $QUERY_*

Platform-specific statement templates (filled with $TARGET, $SOURCE, $COLUMNS, etc. at runtime).

Variable	Description
$QUERY_CTAS	CREATE TABLE … AS SELECT (includes engine/ordering clauses on ClickHouse).
$QUERY_VIEW_CREATE	CREATE VIEW … AS SELECT.
$QUERY_TRUNCATE	Truncate a table.
$QUERY_DROP_TABLE / $QUERY_DROP_VIEW / $QUERY_DROP_EXTERNAL_TABLE	Drop DDL for tables / views / external tables.
$QUERY_STATISTICS	Refresh statistics (ANALYZE / OPTIMIZE TABLE / no-op).
$QUERY_VACUUM	Vacuum statement or no-op where auto-vacuum applies.
$QUERY_CDC_INSERT / $QUERY_CDC_DELETE	CDC upsert primitives (insert new, delete matched keys).
$QUERY_ADD_COLUMN / $QUERY_ALTER_COLUMN	Schema-evolution DDL (add / retype a column).
$QUERY_PREVIEW_CACHE	Preview SELECT … LIMIT $LIMIT.
$QUERY_CACHE_BUILDER	CTAS that builds a preview/cache table capped at $MAX_CACHE_SIZE.

Loading & staging

Variable	Description
$LOAD_COMMAND	Bulk-load command from a local file into the target (e.g. clickhouse-client … INSERT … FORMAT CSV, Snowflake COPY INTO, Yellowbrick ybload).
$STAGE_COMMAND	Upload a local file to object-storage staging (e.g. aws s3 cp …).
$UNSTAGE_COMMAND	Remove a staged file after load (e.g. aws s3 rm …).
$OBJECT_STORAGE	Name of the S3/Blob general connection used for staging (formerly $CORELLI_CONNECTION).
$AWS_BUCKET	s3:// bucket for staging; must match the $OBJECT_STORAGE connection's bucket.
$CLICKHOUSE_CMD	Base clickhouse-client -h $MPP_HOST --port $MPP_PORT invocation.
$SCP_CALL	Template to scp a local file to a remote loader/edge host.
$SHELL_CALL	Template to run a remote shell command ($COMMAND) over SSH on that host.
$GPFDISTPORT	Greenplum gpfdist port (default 9002).
$EXAPLUS_CLI_PROFILE	EXAplus CLI profile name (Exasol).
$FILESTORE_VOLT_PATH	DBFS FileStore staging path for volt files (Databricks); uses $VOLTID.

Hive (SparkSQL external tables)

Variable	Description
$HIVE_CONNECTION	Hive thrift-server connection name for external-table registration.
$HIVE_DATABASE / $HIVE_SCHEMA	Hive database / schema for registered external tables.

---

Appendix — step-level template tokens (not variables)

These are substituted by the executing step, not stored in a variable package. They appear inside the templates above:

$TARGET, $SOURCE, $SELECT_QUERY, $COLUMNS, $KEY_COLUMNS, $COLUMN, $COLUMN_NAME, $DATATYPE, $DATA_TYPE, $DATABASE, $SCHEMA, $TABLE, $LIMIT, $ARG, $LOCALFILE, $FILENAME, $LOGFILE, $BADFILE, $VOLTID, $COMMAND, $STEPID, $GUID.

Source references

• Batch scope: source/root-engine-core/.../engine/core/control/EngineState.java
• Job scope (identity, watermarks, platform runtime, connection vars, env): source/root-engine-core/.../engine/core/parts/Job.java
• Resolution order: source/root-engine-core/.../engine/core/parts/BaseStep.java (getVarData)
• Variable package API: source/root-engine-core/.../engine/metadata/MaestroVariablePackage.java
• Platform config: source/root-engine-install/db/metadata/integrators/<platform>/system.cfg
